• Simrad CAM-1 IP Camera Stainless Steel Marine Grade
1 1

Simrad

Simrad CAM-1 IP Camera Stainless Steel Marine Grade

Simrad CAM-1 IP Camera Stainless Steel Marine Grade

$614.95 USD
$614.95 USD
Sale Sold out
Shipping calculated at checkout.

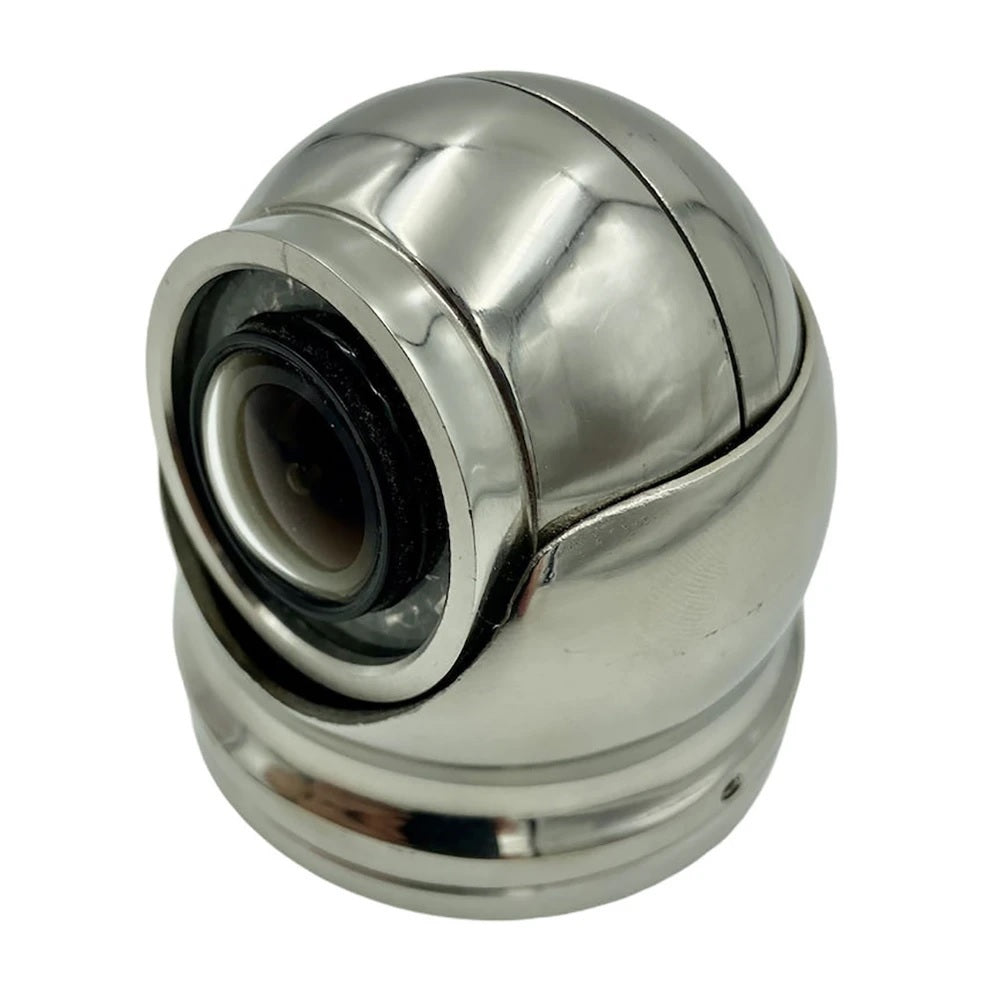

Simrad CAM-1 Marine grade 316 Stainless Steel IP Camera

Model: 000-15876-001
  • Pre-configured for use with Simrad, Lowrance and B&G MFDs
  • Fast setup on each MFDs
  • Rugged 316 Marine Grade Stainless Steel Housing
  • 1.8mm 160 deg viewing angle - See the entire deck
  • Compatible with NOS 20.2 or later
  • Built In IR LED Illumination (10m Range)
  • PoE IEEE802.3af Power Option
  • Extremely Low Power Consumption
  • IP66 Environmental Protection
Specifications
PoE
IEEE802.3af (RJ45)
DC 12V DC (10-16V) DC 2.1/5.5mm Male CCTV power connector
Power Consumption
IR LED Off 1.38W (0.1A at 13.8V DC)
IR LED On 2.76W (0.2A at 13.8V DC)
Enviromental
Operating temperature -30 degC to +60 degC (-22 degF to 140 degF)
IP Rating IP66
Resolution
Main stream 1080p (1920x1080)
Sub Stream 448p (800x448)
Protocol RTSP
Mechanical
Lens 1.8mm (160 deg Wide Angle)
Sensor 1/4 CMOS
Housing 316 Stainless steel
Weight 420g
MFD resolutions capabilities:
NSSevo3S
