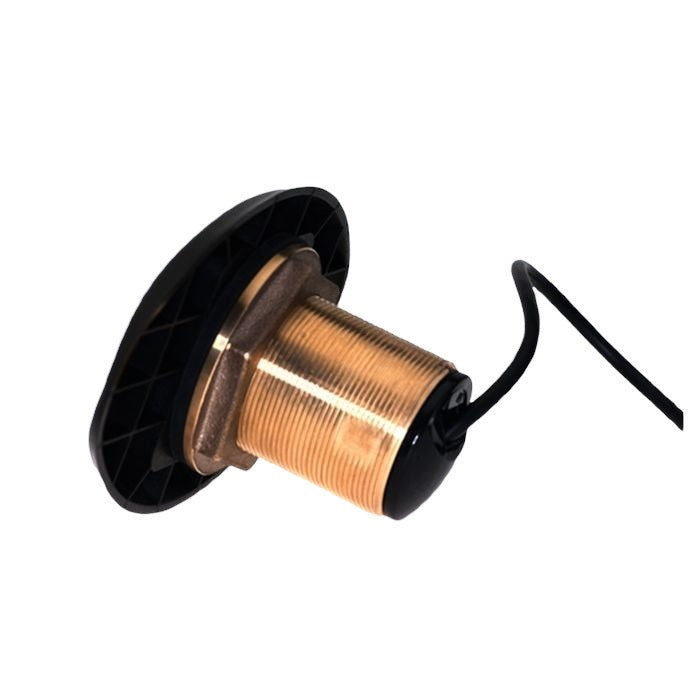

Simrad Bronze HDI Thru Hull 50/200/455/800 Khz 9-PIN 12D

Simrad Bronze HDI Thru Hull 50/200/455/800 Khz 9-PIN 12D

$510.95 USD
$540.00 USD $510.95 USD
Sale Sold out
Shipping calculated at checkout.

Simrad Bronze HDI XDCR 12deg Tilt 50/200 455/800

Model: 000-13906-001
  • Provides 50/200kHz traditional frequencies PLUS 455/800kHz Down Scan Imaging plus temperature

The transducer comes with a 33 ft cable and Black 9 Pin connector which plugs directly into a compatible echosounder. The transducer must be selected in the installation menu on the device.

Specifications
Frequencies
50,200,455 and 800 kHz
Beam width @ -3db 50kHz 45 deg 200kHz 11 deg 455kHz Fore to aft 2.8 deg, Port to starboard 56 deg
800kHz Fore to aft 1.6 deg, Port to starboard 32 deg
Cable length 10 meter
