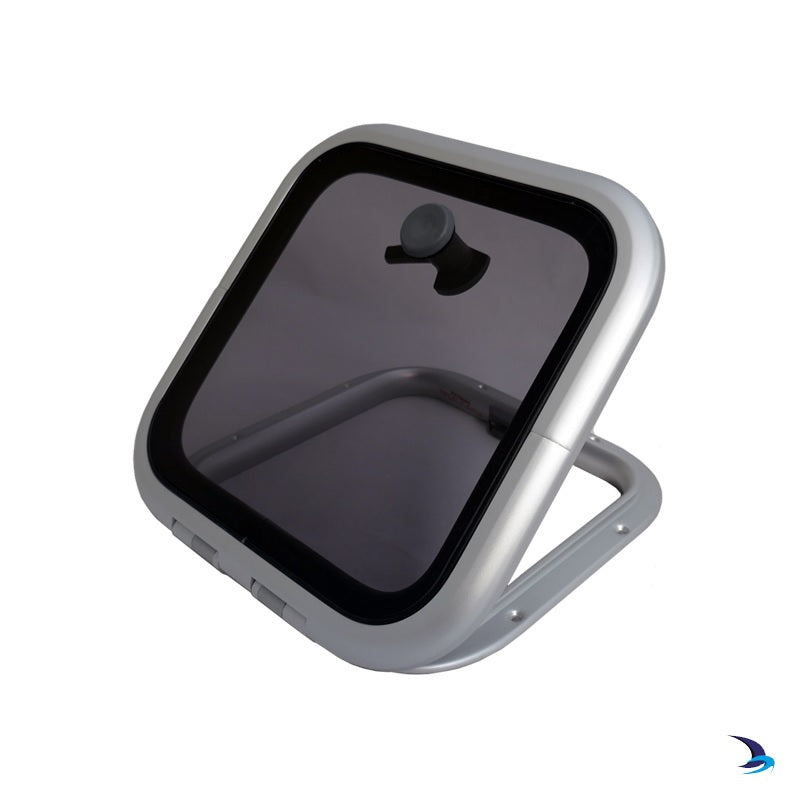

Lewmar Size 10 Ocean Series Hatch Flat Base

• Fit to a flat surface with a maximum tolerance of +/- 1mm.
• Fastening size at hinge section use (M6 / 1/4 in).
• Fastening size for lower frame use 5mm CSK screw No.10 UNC 2 BA.
• Flat base hatches cannot be used with Trim kits or Roller shades

Lower Frame (in)	Acrylic Colour	Hatch Weight (lb)	Acrylic Window Thickness (in)
Flat Base	Smoke Grey	5.77	3/8

Dimensions

<table cellpadding="0 in style="border-collapse: collapse" border="1 in> Length X (in) Width Y (in) Height Z (in) Radii R (in) Hinge Length HX (in) Hinge Width HY (in) Cut-Out Length Flat X1 (in) Cut-Out Width Flat Y1 (in) Cut-Out Radii Flat R1 (in) 12 3/4 12 3/4 1 9/16 2 15/16 3/16 5 7/16 10 1/16 10 1/16 1 9/16
